Step 1: Research

• • Sensor Width (mm) The most critical parameter for all subsequent calculations. It defines the real-world reference for horizontal scale and must be obtained from official manufacturer specifications or reliable databases.
  • Sensor Height (mm) (Optional) Used to compute vertical FOV and aspect ratio-dependent calculations. While not essential for focal length computation, it becomes relevant for full-frame reconstruction and depth accuracy.s
• Gather essential tools:
  • Ruler or Measuring Tape — For baseline real-world measurements (preferably metric, millimeters for better precision).
  • Calipers (Vernier or Digital) — For small or very precise measurements, like distances between fine points on close-range calibration targets.
  • Laser Distance Measurer — For fast, high-accuracy distance readings at longer ranges (optional but recommended).
  • Tripod — To stabilize the camera during image capture; prevents motion blur and misalignment.
  • Focus Chart or Target — Printed Siemens star, checkerboard, ruler, or any high-contrast flat surface for picking scale references precisely.
  • Textured Surface — If no printed chart is available, detailed real-world textures (brick walls, book spines, patterned surfaces) plus a scale object (like a ruler) work well.
  • Shutter Remote or Self-Timer — To avoid camera movement by touching the shutter button directly.
  • Lighting Equipment — Soft, diffuse lighting (lamps, reflectors, window light) to minimize glare and create even illumination.
  • Find your camera’s sensor width (in millimeters). Enter this in the TPS calculator, "Sensow Width" below.
• Popular camera manufacturers
  • Canon Cameras
  • Nikon Cameras
  • Sony Cameras
  • Panasonic Lumix
  • Fujifilm Cameras
  • Olympus (OM System)
  • Leica Cameras
  • Hasselblad Medium Format
• Download Example Calibration Images:
  • 📷 Sample Calibration Image 1
  • 📷 Sample Calibration Image 2
  • 📷 Sample Calibration Image 3
• Use Precise Measurement Tools:
  • Laser measuring tools provide quick, highly accurate distance measurements from the camera to the target, making them ideal for precise scale calibration in stop-motion workflows. A single operator can easily measure without needing a second person or stretching a tape. For best results, use a standard measuring tape or a Laser Distance Measurer (Wikipedia) for accurate distance measurement.
• Confirm exact sensor width from official specs or reliable databases.
• Enter your camera’s sensor width (in millimeters) in the TPS calculator form, "Sensow Width" below.

• Pro Tip for Users: “When measuring distances between close points (like checkerboard squares), digital calipers can achieve much greater accuracy than trying to read with a ruler.”

Step 2: Capture

Image Acquisition Under Controlled Conditions

Set up your camera on a tripod and take a photo of two clear points that are flat and straight in front of the lens (not tilted). You can use a printed target or choose two sharp, visible spots in the scene. Keep the camera still, use good lighting, and make sure nothing is blurry.

To enable accurate triangulation, identify two clearly defined reference points within the scene. These points must lie on a flat surface that is perpendicular to the optical axis (i.e., parallel to the sensor plane). Correct placement minimizes parallax distortion and ensures reliable baseline measurement.

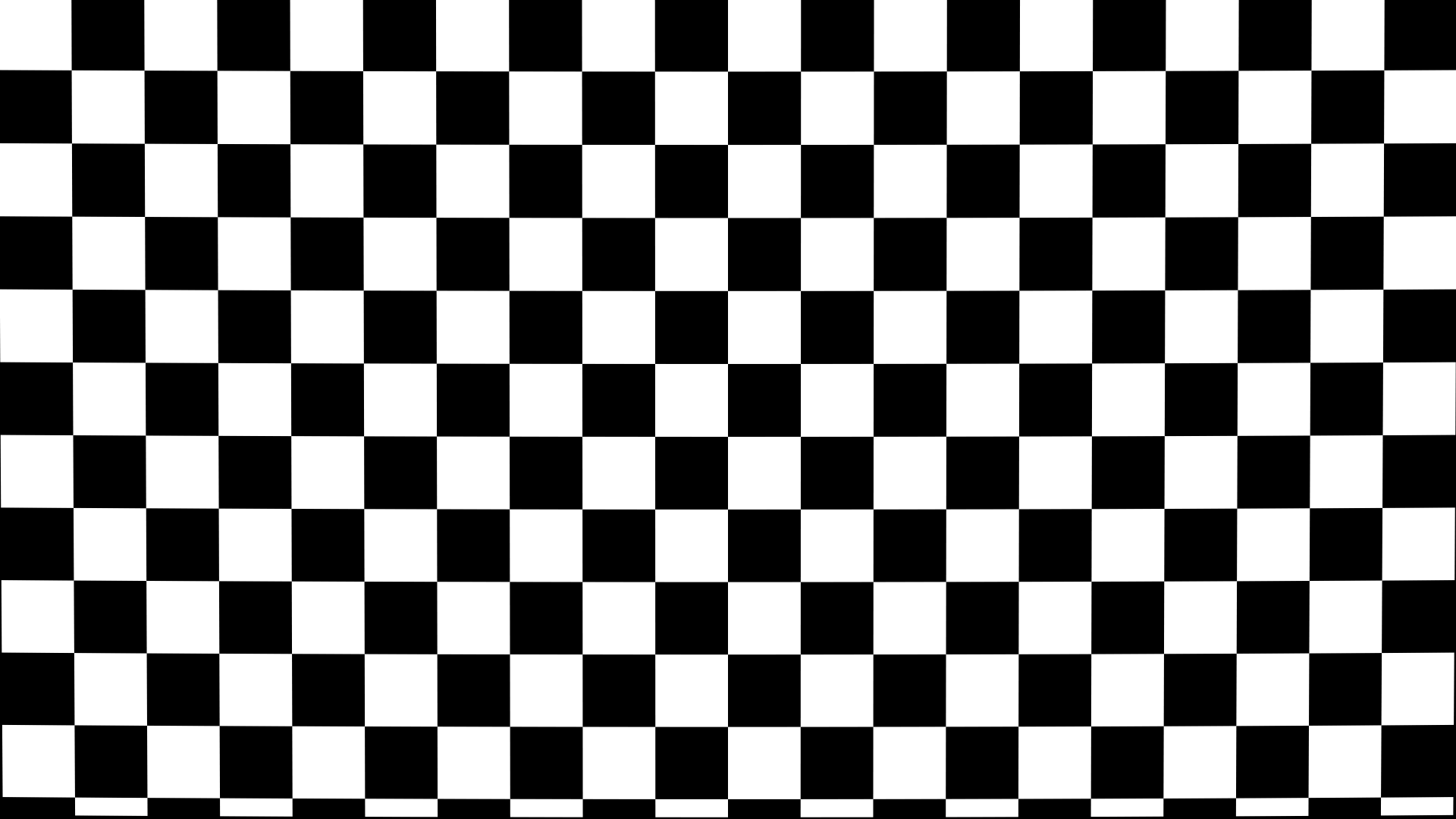

• Option 1: Use a Printed Calibration Target — Place a printed Siemens star, checkerboard, or ruler into the scene. Attach it to a card or prop that stands upright and sits flat on the ground plane. This provides a reliable and known distance between two target points.
• Option 2: Use Natural Scene Features — Choose two high-contrast, sharply defined points within the image (e.g., corners of bricks, bolts, printed text, decals). For accuracy:
  • Ensure both points are on the same surface or plane.
  • That surface must be perpendicular to the lens axis (e.g., ground plane, back wall).
  • Measure the real-world distance between those points using a ruler or calipers.
• Set up the scene with proper lighting. Use even, diffuse illumination to avoid shadows or glare on your target points.
• Stabilize the camera. Use a tripod, fix the exposure and focus manually, and disable stabilization systems (IBIS/OIS).
• Capture multiple focus distances, ideally starting from infinity and progressing to minimum focus.

💡 Pro Tip: A labeled index card with a marked baseline and known real-world spacing makes a great reusable calibration prop. Secure it flat and perpendicular to the lens for best results.

Step 3: Measure

Capturing Geometric Inputs
Now that you’ve taken the photo, it’s time to measure a few key things. First, measure the real-world distance between the two points you picked in your scene. This is called the baseline, and it tells the system how big things are in real life. Next, use the app to check how many pixels apart those same two points are in your image. You can also (optionally) measure the distance from your camera’s sensor to the middle of the lens — this is called the nodal point. It helps when doing more advanced things like mixing real footage with CGI or doing multiple passes of the same shot. This step establishes the physical-to-digital relationship between your calibration image and the real world.

• Baseline Distance (mm):
  The physical distance between your two selected target points. This value serves as your primary real-world scale reference. Measure with precision using a ruler, calipers, or something very accurate. Accuracy here directly affects all subsequent focal length and scale calculations.
• Baseline Distance (px):
  The pixel distance between the same two points, measured directly within the image using the LENSMap tool. This value determines the pixel density (px/mm) used for all focal length derivations.
• Entrance Pupil Offset (Δ) — Nodal Point Offset (Optional but Recommended):
  The distance from the camera’s sensor plane (Φ) to the lens’s no-parallax (nodal) point. This value enables accurate mechanical calibration and is essential for clean parallax-free multi-pass shooting, compositing miniatures into live-action, and matching CG perspectives.

🔧 How to Measure the Nodal Point Offset

• Mount your camera on a stable tripod with a sliding rail or panoramic plate. If you don't have one, you can build a basic rail using a flat metal bar with a ¼-20 threaded tripod hole and a sliding slot with a captive screw to secure the camera.
• ⚠️ Caution: When fabricating a DIY rail, ensure the camera is tightly secured and stable before tilting or panning. Avoid unsupported cantilevered setups. If in doubt, consult a machinist or experienced camera technician.
• Place two vertical alignment markers: one close (e.g., tape on a light stand), one distant (e.g., window frame, post).
• Frame the scene so both markers align in the center of the view.
• Pan left/right slightly and observe if the markers shift relative to each other.
• Slide the camera forward or backward along the optical axis.
• The nodal (non-parallax) point is reached when the two markers stay aligned during panning.
• Measure the distance from this nodal point to the sensor plane mark (Φ) on your camera body.

🛠️ DIY Tip: A sliding plate can be made using a flat steel or aluminum bar with a ¼-20 threaded hole (for mounting to a tripod head) and a machined slot for a screw that fits your camera’s tripod socket. Use a washer and rubber pad to prevent rotation.

🎯 Why it matters: The nodal point defines the camera’s geometric center for parallax-free panning — essential for VFX, miniature integration, and CG camera matching.

🔬 Typical Ranges: Many lenses have a nodal point offset between 30–70 mm from the camera sensor plane (Φ), though this can vary with lens design and focal length. Shorter lenses may have closer nodal points, while telephoto and zoom lenses tend to push the nodal point farther forward.

💡 Breathing Effect: Some lenses exhibit focus breathing — a change in field of view as focus shifts. This can slightly affect nodal offset, so for precision work (e.g., in miniature or CG integration), measure at the actual focus distance used in your shot.

• Measure the physical distance from the sensor plane (Φ) to the subject target. FOCUS DISTANCE
• Measure the baseline (real-world) distance between the two target points. BASELINE DISTANCE (mm)
• Measure the offset between the sensor plane and the optical center of the lens (non-parallax point). ENTRANCE PUPIL OFFSET (Nodal Offset)
• Log all measurements immediately to minimize human error and improve repeatability.

Step 4: Load Image

Preprocessing and Metadata Awareness

• Scale Transformations: Scaling the image while preserving aspect ratio does not affect the calculation. Pixel-based ratios remain accurate, allowing the system to compute focal length and field of view correctly.
• Cropping: Cropping the image alters the field of view and simulates the effect of a smaller sensor. This artificially increases the calculated effective focal length and pushes the perceived camera distance farther than it actually is, introducing systemic error in depth and scale reconstruction. Cropping must be avoided.

• Upload your captured calibration image into TPS LENSMap.
• Inspect the image for sharpness, proper framing, and visibility of the target points.

Step 5: Data Entry

Consolidating Inputs for Calculation

• Enter Sensor Width (mm), Image Width (pixels), Baseline Distance (mm), Baseline Pixel Distance (px), and Focus Distance (mm).
• Double-check all units carefully before calculation.

Step 6: Calculate

Deriving Camera Parameters Upon running the TPS formula

• Press Calculate to compute pixel density, effective focal length, and crop factor.
• Review results to confirm plausibility and spot any obvious errors.

Step 7: Log and Archive

• Record all measurements, image filenames, and calculated values.
• Organize into your lens calibration dataset or LENSMap profiles.
